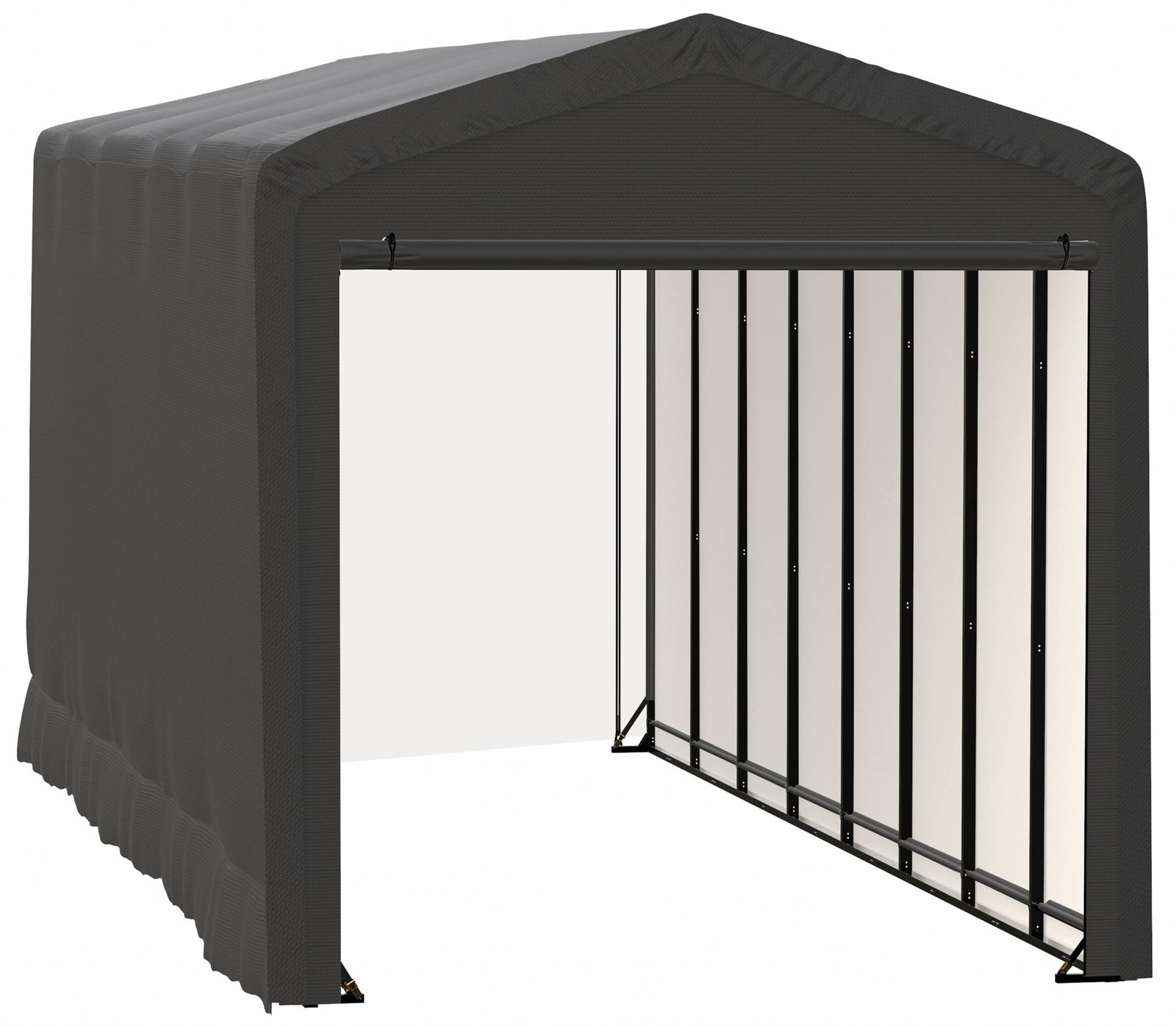

ShelterLogic ShelterTube Wind and Snow-Load Rated Garage, 14x36x16

Shipping:

FREE Shipping (Estimated Arrival: 3 Weeks)

Wind Rating:

Wind rated at 65 MPH

Snow Rating:

Snow rated at 35 pounds per sq. ft. ground snow load

Description

Description

The ShelterTube garage and storage shelter is an excellent option for anyone needing year-round protection for their vehicle, boat, and more. It is built strong with an industrial-strength square tube steel frame and a rugged fabric cover. The ShelterTube is wind and snow-load rated and can take on tough weather.

WHAT'S IN THE BOX?

Steel Frame
One-Piece Fitted Cover
2 Double Zippered Door Panels
18 Easy Hook Anchors
Easy Step-by-Step Instructions

FEATURES

Snow rated at 35 pounds per sq. ft. ground snow load
Wind rated at 65 MPH
Frame made from industrial grade 2 in. x 3 in. 15-gauge rectangular-tube steel which provides a strong frame
A black powder-coated finish is applied on the frame with our proprietary 13-step process which provides superior protection from corrosion, rust, chips, and scratches
The triple-layer fabric covers and end panels are 100% waterproof and engineered to create a tough cover that withstands the elements
The cover is recommended by the Skin Cancer Foundation
Designed for easy DIY assembly and installation with slip-fit connections and self-taping screws
Zippered doors on both ends of the building provide easy access to everything in the building and drive through capability

Specifications

COUNTRY OF ORIGIN : China
Frame Color : Black
FRAME MATERIAL : Steel
PRODUCT FABRIC (PE-PVC-Polyester) : PE
VALANCE HEIGHT (IN) : N/A
BUILDING SHAPE : Peak
SHAPE OF TUBE : Rectangle
RIB TUBING DIAMETER EDGE TO EDGE (IN) : 2.76
ROOF PITCH - LOWER : N/A
ROOF PITCH - UPPER : 3
FOUNDATION WIDTH (IN) : 180
FOUNDATION LENGTH (IN) : 444
DOOR / ENTRANCE HEIGHT (IN) CENTER ZIPPER : N/A
DOOR / ENTRANCE WIDTH BOTTOM (IN) OUTSIDE ZIPPERS : 144
DOOR / ENTRANCE HEIGHT (IN) OUTSIDE ZIPPERS : 169.5
DOOR OPENING WIDTH TOP (IN) OUTSIDE ZIPPERS : 144
GABLE HEIGHT (IN) : 28.56
WALL HEIGHT (IN) : 162.93
ASSEMBLED EXTERIOR DIMENSIONS DEPTH (IN) : 431.97
ASSEMBLED EXTERIOR DIMENSIONS HEIGHT (IN) : 191.49
ASSEMBLED EXTERIOR DIMENSIONS WIDTH (IN) : 170.76
TOTAL STORAGE VOLUME (CU. FT.) : 7694
TOTAL STORAGE AREA (SQ/FT) : 512
STORAGE BAG INCLUDED (Y/N) : No
WATER-RESISTANT (Y/N) : Yes
WATERPROOF (Y/N) : Yes
SNOW LOAD RATING (PSF) : 35
WIND LOAD RATING (MPH) : 65
ASSEMBLY REQUIRED (Y/N) : Yes
# OF PEOPLE FOR ASSEMBLY : 4
